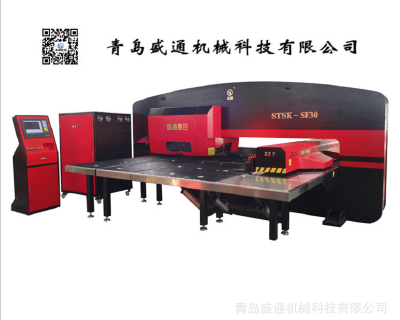

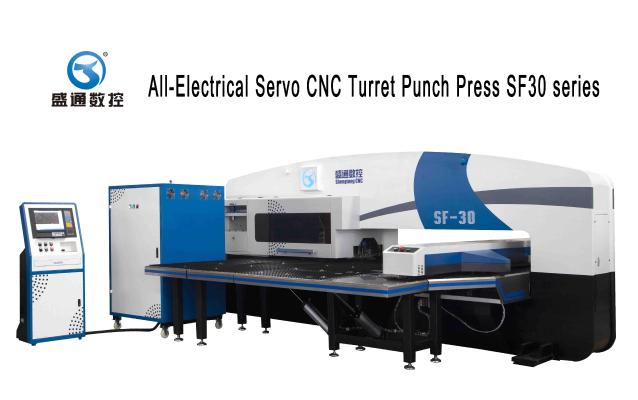

Numerical control punch technology agreement:
Our company solemn promise: the transmission part of the equipment and the main parts are all imported
In the same kind of products, we can realize the processing without blind area.
Impulse pressure: 300KN;
Effective stroke: a positioning 2500mm * 1250mm;
Chong times: 180 times /min - 280 times /min;
Max. sheet thickness: T = 6mm;
Stamping bed: the pneumatic friction clutch brake, safe double valve control; high rigidity of O- type frame structure, the carriage and the beam integration design, enhanced rigidity, more accurate positioning, high speed feeding is more stable, eliminate the worktable of X, Y axis dynamic offset;
Turret mold: using the world's most advanced thin turret, long guide Amada mold, reduce the weight of the mold disc while still maintaining a long guide structure, positioning accuracy
Cylinder: South Korea ARK import cylinder, precise locking and positioning;
Lead screw: South Korea imported large lead precision ball screw;
Guide rail: Taiwan wide straight guide rail, the use of widened flange type slider;
Motor / Driver: Taiwan AC servo motor, stable and reliable performance;
Main electrical components: switching power supply, relays, sensors, contacts, and other imported parts;
Control unit: integrated LCD display, strong function, to ensure the stability of the program, software and the overall equipment; separate control cabinet and bed separation;
Coupling: Taiwan Jian Xiang flexible shaft coupling to ensure that the transmission and correction accuracy;
Reducer: Taiwan Thomas (TMOX) brand machine, high precision to ensure the accuracy of the positioning of the cylinder;
Clamp: using float pneumatic clamp, together with the floating plate, clamping force and convenient feeding, avoid plate distortion;
Working table: high quality elastic brush and ball worktable, smooth operation, no resistance, no scratch plate; automatic graphic conversion processing program; with mold library management system; automatic plate positioning; can achieve one button operation, breakpoint processing, display and simulation map display piece processing path and other functions;
Control axis number: 3 axes (X, Y, T);
Lubrication system: the machine is fully automatic cycle lubrication, which greatly reduced due to improper lubrication caused by equipment failure;
After sales service: free training operators to track, within 24 hours to reach the customer plant;
Warranty: three bags of one year, life-long maintenance.
